S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors

100
MOQ
S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Operating voltage: 230 VAC
Mounting type: Wall / Window Mount
Airflow: 2000m³/h
Weight: 15 KG
Fan type: Centrifugal type air curtain
Cover material: Aluminum air curtain
Power supply: 220-240/110V 50/60HZ
Fan speed: 2 Speeds
Control type: Button+Remote
Color: White
Input power: 200-400W
Air volume: 790-2360 m3/h
Air speed: 11.5-14.5 m/s
Noise level: <51-57 dB
Size range: 900-2000x198x215 mm
Evidenziare:

S7 Series air curtain 2000m³/h

,

wall mount air curtain 230V

,

compact air curtain for 2.3-3.2m doors
Informazioni di base
Place of Origin: Guangdong, China
Marca: Theodoor
Termini di pagamento e spedizione
Descrizione di prodotto
New Air Curtain Product S7 Series From 0.9m to 2m Door Centrifugal Fan
Premium Aluminum Alloy Design

Featuring an aluminum cover combined with ABS material, this air curtain offers a compact, elegant design that is lightweight, durable, and rust-resistant for long-term performance.

High Performance Air Delivery

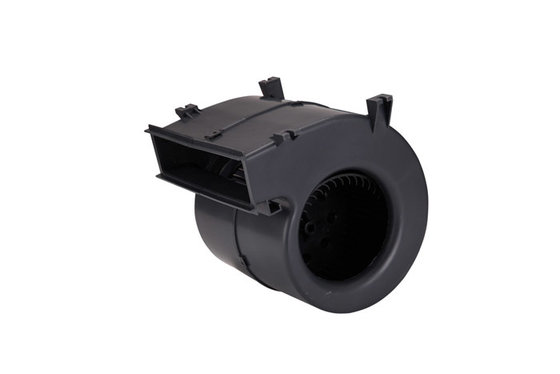

  • Compact size with powerful centrifugal turbine fans for high air velocity and low noise operation
  • Innovative turbine fan design increases air volume and pressure efficiency
  • Pure copper high-performance motor enables continuous operation for 8000+ hours
Advanced Shock Resistance

3N design (new air duct, new turbine fan, and new motor connection process) ensures superior shock resistance for safe transportation and reliable long-term use.

Intelligent Control System
  • Special air guide plate design with adjustable air direction for optimal air barrier

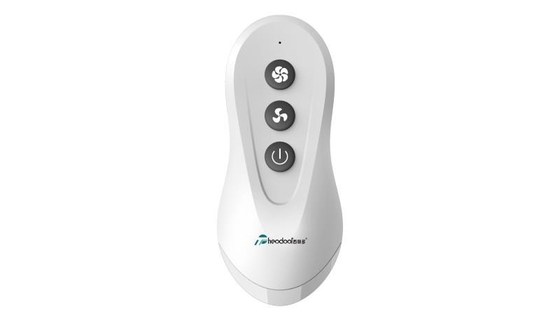

  • Available with remote control and key switch options
  • Selectable high and low air velocity settings
Technical Specifications
Model Voltage (V/HZ) Input Power (W) Air Volume (m³/h) Air Speed (m/s) Noise (dB) Net Weight (Kg) Size (mm)
FM-3209-L/Y 220~50 200/170 1030/790 14.5/11.5 <51/<48 12 900×198×215
FM-3210-L/Y 220~50 210/180 1130/870 - <51/<48 12.5 1000×198×215
FM-3212-L/Y 220~50 260/230 1400/1080 - <52/<49 14.5 1200×198×215
FM-3215-L/Y 220~50 330/300 1780/1370 - <54/<52 18 1500×198×215
FM-3218-L/Y 220~50 390/360 2140/1640 - <56/<53 21.5 1800×198×215
FM-3220-L/Y 220~50 400/370 2360/1820 - <57/<55 24 2000×198×215
Recommended Applications
Ideal for door entrances in various commercial and public spaces with coverage for door heights of 2.5-3.2m.
Business Organizations:
Supermarkets, shopping malls, chain shops, department stores, hotels, restaurants		 Public Places:
Subways, airports, stations, bookstores, exhibition halls, stadiums, museums, commercial buildings, hospitals		 Entertainment Venues:
Movie theaters, clubs, bars, cafes, Internet bars, beauty shops
S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors 0 S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors 1
Why Choose Our Air Curtains
  • 18+ Years Experience: Manufacturer with extensive export experience and 100+ air curtain models for various environments
  • Professional Engineering: Dedicated R&D team focused on air curtain technology
  • Advanced Technology: State-of-the-art machinery ensures superior product performance and reliability
  • Quality Materials: Rigorous selection of materials for safety, efficiency, and environmental protection
  • Stringent Quality Control: 100% product performance testing before shipment
  • Cost-Effective: Long-life, high-reliability products deliver excellent value
  • Responsive Support: Prompt attention to customer queries and requirements
Product Images

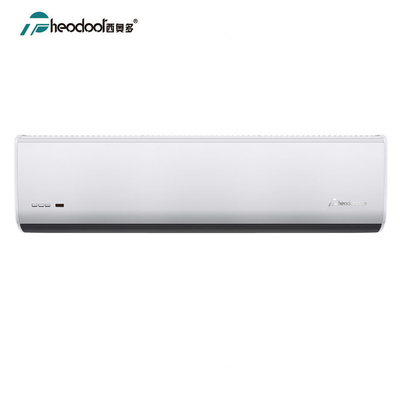

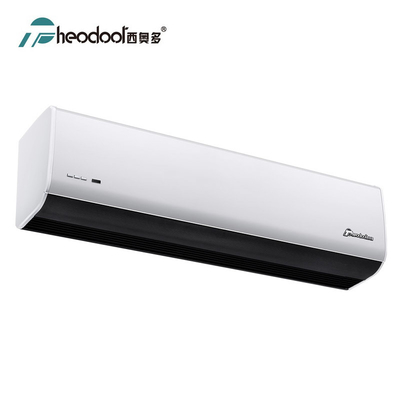

S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors 2 S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors 3
